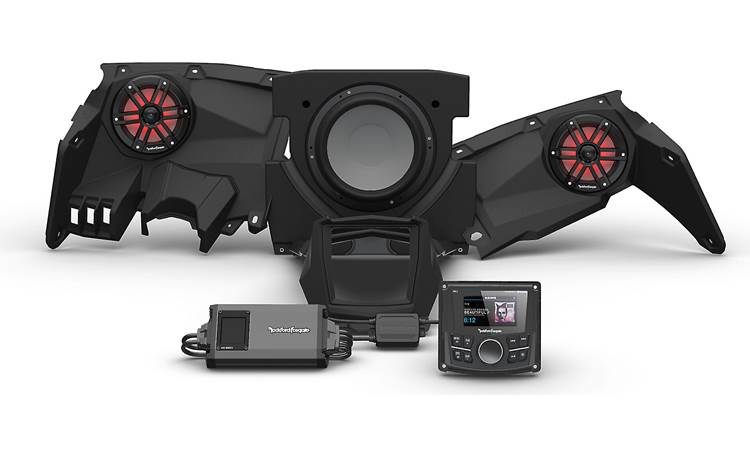

Rockford Fosgate X317-STG3

  • PMX-2 Digital Media Receiver:
  • Marine digital media receiver
  • Trim-ring
  • Mounting plate
  • Mounting bracket
  • Wiring harness
  • Backstrap
  • 4 Machine screws
  • 4 Hex-nuts
  • Installation/Operation booklet
  • M1-65B 6.5″ Speakers:
  • Two 2-way marine speakers
  • Two 11″ LED power harnesses with 4-pin Deutsch connectors on one end
  • Twelve 1-1/4″ Stainless steel Allen head screws
  • Two 3mm Allen head bits
  • 3.5mm Drill bit
  • Instruction manual (English/ French/ Spanish/ German/ Italian)
  • Rockford Fosgate contact information
  • M5-800X4 Amplifier:
  • 4-Channel powersports amplifier
  • 11″ Power/ground/turn-on & speaker output harness (installed on amp)
  • 11″ Input harness (installed on amp)
  • Two 14″ RCA-to-Molex input adapters
  • Power/ground/turn-on adapter plug
  • Two 7.5″ speaker output harnesses
  • 3mm Allen key
  • Owner’s manual
  • Performance certificate
  • Contact information
  • X317-M1FWE 10″ Subwoofer:
  • Custom enclosure loaded with one M1D2-10B 10″ subwoofer
  • 2 Mounting brackets
  • 9.5′ 2-Wire harness
  • Fourteen 8″ wire ties
  • Four 6.5″ wire ties w/push-fasteners
  • Six 12mm hex-socket screws
  • Contact information
  • PMX-RGB Light Controller:
  • PMX-RGB LED Controller w/ attached 17″ LED cables and 17″ power/ground harness (inline 2A ATC fuse)
  • 6″ Power/ground harness adapter
  • Two 3/4″ machine-screws
  • 2 Nuts
  • 2 Lock-washers
  • Installation manual
  • X317-DK Dash Kit:
  • Radio housing
  • Trim ring
  • Rear support plate
  • 35″ Speaker harness
  • 6′ Wire antenna (Motorola plug on one end / bare-ended wire on other end)
  • Two 24mm screws
  • Eight 1/2″ screws
  • Twelve 8″ wire-ties
  • Contact information card
  • X317-FSE Speaker Enclosures:
  • 2 Unloaded speaker enclosures
  • 35″ Left front speaker harness
  • 52″ Right front speaker harness
  • Five 8″ wire ties
  • One 30mm bolt
  • 1 Flat washer
  • 1 Nut
  • 2 Warning decals
  • Contact information
  • RFX3-K8 Amplifier Wiring Kit:
  • 11′ 8 AWG Wiring harness (inline 60A maxi-fuse) w/attached 4′ RCA/speaker harness
  • Mounting plate
  • 2 Brackets
  • Fourteen 8″ Wire ties
  • Four 6.5″ wire ties w/push-fasteners
  • Four 10mm screws
  • 2 Hex nuts
  • 1 Flange nut
  • Installation instructions

CALL FOR PRICE

SKU X317-STG3
Brand:

Description

Product highlights:

  • sound system includes a digital media receiver, 6-1/2″ speakers, a 4-channel amp, and a 10″ subwoofer
  • also includes front and rear speaker pods, sub enclosure, wiring, amp kit and mounting plate
Rockford Fosgate PMX-2
  • marine digital media receiver with AM/FM/WB tuner (does not play CDs)
  • built-in amplifier (25 watts RMS/50 peak x 4 channels)
  • works with Apple and Android smartphones
  • USB port and aux input
  • built-in Bluetooth for music streaming (will not make calls)
Rockford Fosgate M1-65B 6-1/2″ 2-way front speakers
  • Color Optix-compatible
  • marine-rated speakers pre-loaded in custom-fit enclosures
  • power handling up to 75 watts RMS (150 watts peak)
  • salt-, fog-, and UV-resistant Santoprene rubber surround
  • integrated 1″ dome tweeter
Rockford Fosgate M1D2-10B 10″ marine subwoofer w/ enclosure
  • power handling: 300 watts RMS (1200 watts peak)
  • rugged, UV-stable injection-molded plastic construction
  • dual 2-ohm voice coils
  • durable Santoprene rubber surround
Rockford Fosgate M5-800X4 4-channel amp
  • 100 watts RMS x 4 at 2 or 4 ohms (400 watts peak)
  • 200 watts RMS x 2 at 4 ohms in bridged mode
  • variable low- and high-pass filters (50-250 Hz at 12 dB/octave)
  • front and rear tone controls (45 Hz, 12,500 Hz)
  • MFR # X317-STG3
