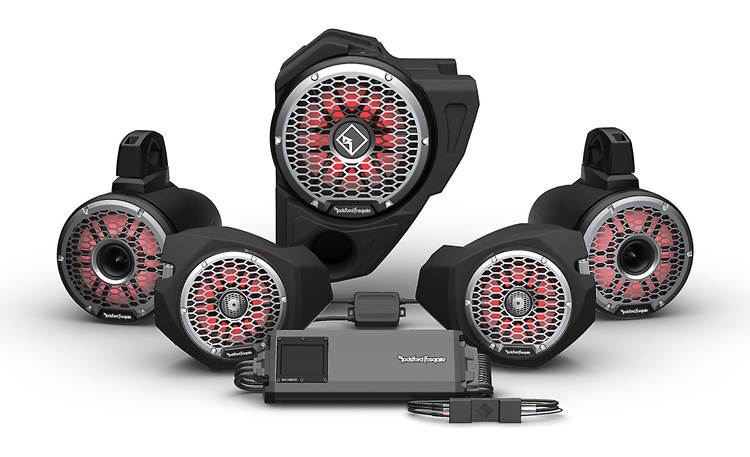

Rockford Fosgate RZR14RC-STG6

  • M5-1500X5 Amplifier:
  • 5-Channel powersports amplifier
  • 11″ Power/ground/turn-on & subwoofer output harness (installed on amp)
  • 11″ Input harness (installed on amp)
  • Three 14″ RCA-to-Molex input adapters
  • Power/ground/turn-on adapter plug
  • Subwoofer output adapter plug
  • Two 7.5″ speaker output harnesses
  • 3mm Allen key
  • Owner’s manual
  • Performance certificate
  • Contact information
  • M2WL-8HB Wake Tower Speakers:
  • Two M2 8″ waketower speakers (black) w/stainless steel grilles
  • 2 Plastic sport grilles (black)
  • 2 Upper mounting brackets
  • 2 Lower mounting brackets
  • Four 2.5″ – 3.0″ rubber shims w/mounting hardware (four 2-5/8″ bolts / 4 flat washers / 4 lock washers)
  • Four 2.5″ – 3.0″ rubber shims w/mounting hardware (four 1-3/4″ bolts / 4 flat washers / 4 lock washers)
  • Two 12″ 6-pin wire harnesses w/Deutsch connectors
  • 2 Connection cover-plates
  • 4 Plastic grommets
  • 1/8″ Hex bit
  • T-45 Torx wrench
  • Instruction manual
  • Contact information card
  • M2-65B Speakers:
  • Two 6.5″ 2-way marine speakers
  • 2 Centrex plastic grilles (Black)
  • 2 Stainless steel grilles
  • 2 Grille rings (Black)
  • Two 11″ LED power harnesses with 4-pin Deutsch connectors on one end
  • Twelve 1-3/4″ Stainless steel Allen head screws
  • 3mm Allen head bit
  • 3.5mm Drill bit
  • Instruction manual (English/ French/ Spanish/ German/ Italian)
  • M2D4-10IB Subwoofer:
  • One 10″ marine subwoofer
  • 1 Centrex plastic grille (black)
  • 1 Stainless steel grille
  • 1 Grille ring (black)
  • One 11″ LED power harness with 4-pin Deutsch connector on one end
  • Six 2-3/8″ Stainless steel Allen head screws
  • 4mm Allen head bit
  • 4.5mm Drill bit
  • Instruction manual (English/ French/ Spanish/ German/ Italian)
  • PMX-RGB Color Optix Light Controller:
  • LED Controller w/ attached 17″ LED cables and 17″ power/ground harness (inline 2A ATC fuse)
  • 6″ Power/ground harness adapter
  • Two 3/4″ machine-screws
  • 2 Nuts
  • 2 Lock-washers
  • Installation manual
  • RZR14-FWE Subwoofer Enclosure:
  • Sub enclosure w/ attached 28″ internal speaker wire
  • 30″ Wiring harness
  • Two 1″ screws
  • 2 Flat-washers
  • Two 1-1/2″ adhesive foam pads
  • One 14″ section of bare-ended red wire
  • Five 8″ zip-ties
  • One 14″ zip-tie
  • 1 Port plug
  • Rockford Fosgate contact information
  • RFPOL-RC5:
  • Polaris Ride Command interface (attached 12″ input and 5″ output harnesses)
  • Instructions
  • RZR14-FSE Speaker Pods:
  • 2 Empty speaker pods w/ attached 38″ wire harness
  • 2 Threaded studs
  • 4 Mounting screws
  • 2 Mounting bolts
  • 6 Washers
  • Hex-head screwdriver
  • Five 8″ zip-ties
  • Rockford Fosgate contact information
  • RZR14-K4 Amplifier Wiring Kit:
  • 9.5′ Power/ground/speaker harness (4 AWG w/ inline fuse-holder and 100A Maxi fuse installed)
  • 30″ Front/Rear RCA to Molex harness
  • 2 Amplifier mounting plates
  • Two 25mm Torx-socket screws (T30)
  • One 12mm Torx-socket screw (T30)
  • Four 10mm Torx-socket screws (T10)
  • Twenty 8″ Wire-ties
  • Four 6″ zip-ties w/ push-fastener ends
  • Rockford Fosgate contact information
  • MX-RSW16 Speaker Harnesses:
  • Two 17.5′ Rear speaker harnesses
  • Six 6″ wire-ties w/ push-fastener ends
  • Sixteen 7.5″ wire-ties
  • Contact information card

CALL FOR PRICE

SKU RZR14RC-STG6
Brand:

Description

Product highlights:

  • Element Ready UTV system includes 6-1/2″ speakers, 8″ speakers, 5-channel amp, and 10″ subwoofer
  • also includes front and rear speaker pods, sub enclosure, Ride Command interface, a Color Optix controller, wiring, amp kit and mounting plate
Rockford Fosgate M2-65B 6-1/2″ 2-way marine speakers
  • power handling up to 150 watts RMS (600 watts max)
  • injection-molded mineral-filled parabolic polypropylene cone
  • 1″ bridge-mounted tweeter
Rockford Fosgate M2WL-8HB 8″ tower speakers
  • power handling: 300 watts RMS (1200 watts peak power)
  • 360° rotational mounting capability for unlimited flexibility
  • high-density sealed polyethylene enclosures with stainless steel grilles
Rockford Fosgate M2D4-10IB 10″ marine subwoofer
  • handles up to 400 watts RMS (1600 watts peak)
  • sensitivity: 90.3 dB
  • impedance: 2 ohms
  • integrated Deutsch™/Amphenol™ connectors for easier wiring connections
  • injection-molded frame with UV inhibitors
Rockford Fosgate M5-1500X5 5-channel amp
  • 100 watts RMS x 4 + 600 watts x 1 at 2 ohms
  • 100 watts RMS x 4 + 400 watts x 1 at 4 ohms
  • conformal-coated circuit board — suitable for power sports and marine applications
  • top-mounted control panel with waterproof smoked lens
  • MFR # RZR14RC-STG6
