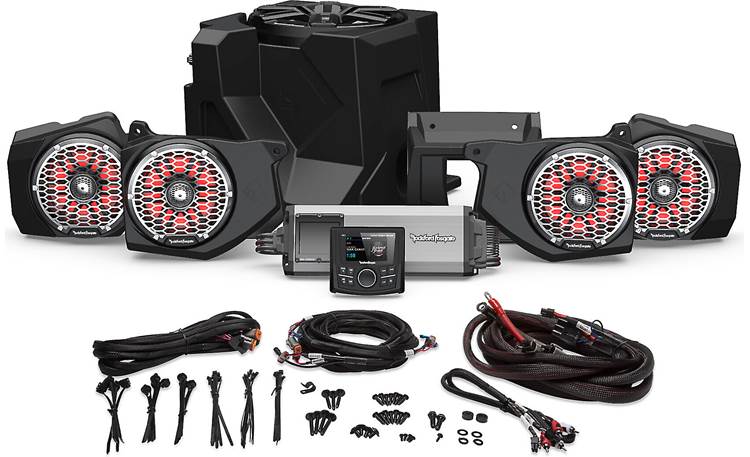

Rockford Fosgate RNGR18-STG6

  • PMX-3:Marine digital media receiver with attached 5″ wiring harness
  • RNGR18-DK:
  • Mounting bracket
  • Trim panel
  • 31″ Wiring harness
  • 6′ Antenna wire w/ Motorola connector
  • Five 8″ wire ties
  • Eight 5/8″ screws
  • Rockford Fosgate support information
  • M5-1500X5 Amplifier:
  • 5-Channel powersports amplifier
  • 11″ Power/ground/turn-on & subwoofer output harness (installed on amp)
  • 11″ Input harness (installed on amp)
  • Three 14″ RCA-to-Molex input adapters
  • Power/ground/turn-on adapter plug
  • Subwoofer output adapter plug
  • Two 7.5″ speaker output harnesses
  • 3mm Allen key
  • Owner’s manual
  • Performance certificate
  • Contact information
  • M2-65B Speakers (x2):
  • Two 6.5″ 2-way marine speakers
  • 2 Centrex plastic grilles (Black)
  • 2 Stainless steel grilles
  • 2 Grille rings (Black)
  • Two 11″ LED power harnesses with 4-pin Deutsch connectors on one end
  • Twelve 1-3/4″ Stainless steel Allen head screws
  • 3mm Allen head bit
  • 3.5mm Drill bit
  • Instruction manual (English/ French/ Spanish/ German/ Italian)
  • M2D4-10IB Subwoofer:
  • One 10″ marine subwoofer
  • 1 Centrex plastic grille (black)
  • 1 Stainless steel grille
  • 1 Grille ring (black)
  • One 11″ LED power harness with 4-pin Deutsch connector on one end
  • Six 2-3/8″ Stainless steel Allen head screws
  • 4mm Allen head bit
  • 4.5mm Drill bit
  • Instruction manual (English/ French/ Spanish/ German/ Italian)
  • PMX-RGB Color Optix Light Controller:
  • LED Controller w/ attached 17″ LED cables and 17″ power/ground harness (inline 2A ATC fuse)
  • 6″ Power/ground harness adapter
  • Two 3/4″ machine-screws
  • 2 Nuts
  • 2 Lock-washers
  • Installation manual
  • RNGR18-FSE:
  • 2 Unloaded speaker pods with attached 57″ wire harness
  • Four 1-1/2″ mounting screws
  • Five 8″ wire-ties
  • Rockford Fosgate contact information
  • RNGR18-RSE:
  • 2 Unloaded rear speaker enclosures (each with top and bottom section)
  • 22′ Rear speaker wire harness
  • Eight 8″ wire-ties
  • Four 8″ wire-ties with clips
  • Four 6″ wire-ties with push-fasteners
  • Fourteen 1″ screws
  • 2 Spacers (for 2-seat version)
  • Rockford Fosgate contact information
  • RNGR18-FWE:
  • Unloaded subwoofer enclosure with attached 24″ internal speaker harness
  • Mounting plate
  • Rubber port cap
  • 15.5′ Subwoofer wire harness
  • One 15″ wire-tie
  • Nine 8″ wire-ties
  • One wire clamp
  • Three 1-1/2″ hex-socket screws
  • Two 1″ bolts
  • One 1/2″ screw
  • 2 Flat-washers
  • 2 Lock-washers
  • Rockford Fosgate contact information
  • RNGR18-K4 Amplifier Mounting & Wiring Kit:
  • Amplifier mounting bracket
  • 12′ Power/ground/speaker harness (4 AWG with inline fuse-holder and 100A Maxi fuse installed)
  • 3′ Front/Rear RCA to Molex harness
  • Nine 8″ wire-ties
  • Three 6″ wire-ties with push-fasteners
  • Four 3/8″ screws
  • Rockford Fosgate contact information

CALL FOR PRICE

SKU RNGR18-STG6

Description

Product highlights:

  • Element Ready UTV system includes receiver, two sets of speakers, a 5-channel amp, and a 10″ subwoofer
  • also includes front and rear speaker pods, sub enclosure, a Color Optix controller, noise reduction adapter, wiring, amp kit and mounting plate
Rockford Fosgate PMX-3 marine digital media receiver
  • built-in amplifier (25 watts RMS CEA2006/45 peak x 4 channels)
  • built-in Bluetooth for music streaming (will not make calls)
  • inputs: rear charging USB port, rear aux input; camera input (RCA)
  • outputs: 4-channel preamp outputs (4-volt front and selectable rear/sub)
  • works with SiriusXM satellite radio tuner (sold separately)
  • IPX6 front panel for excellent water resistance
Rockford Fosgate M2-65B 6-1/2″ 2-way marine speakers
  • built-in Color Optix lighting
  • power handling up to 150 watts RMS (600 watts max)
  • injection-molded mineral-filled parabolic polypropylene cone
  • 1″ tweeter
Rockford Fosgate M2D4-10IB 10″ marine subwoofer
  • built-in Color Optix lighting
  • handles up to 400 watts RMS (1600 watts peak)
  • sensitivity: 90.3 dB
  • impedance: switchable 2 or 8 ohms
  • integrated Deutsch™/Amphenol™ connectors for easier wiring connections
  • injection-molded frame with UV inhibitors
Rockford Fosgate M5-1500X5 5-channel amp
  • 100 watts RMS x 4 + 600 watts x 1 at 2 ohms
  • 100 watts RMS x 4 + 400 watts x 1 at 4 ohms
  • conformal-coated circuit board — suitable for power sports and marine applications
  • top-mounted control panel with waterproof smoked lens
  • MFR # RNGR18-STG6
