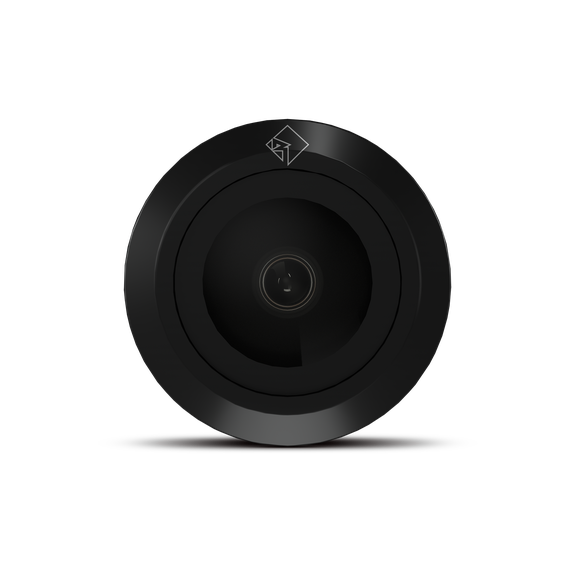

Rockford Fosgate MX-CAM

Rockford Fosgate MX-CAM

Image Sensor: 1/4″ CMOS
Resolution: 680 x 488
Lens: 120(H), 89(V)
Video Output: 1.0Vpp Composite, 75-Ohms
S/N Ratio: > 42dB
Minimum Illumination: 0.1 Lux
Mirror Image: OFF = cut mirror option wire ON = connect mirror option wire
Operating Temp: -30 to +70 Celsius
Cutout Diameter: 19mm (0.75″)
DC Power: 12V, 70mA
Operating Voltage: DC 12V (8V-15V)
In The Box: (1) Eyeball camera with 11″ pigtail
Shipping Weight: TBA

CALL FOR PRICE

SKU MX-CAM
Brand:

Description

Product Highlights:

  • Designed for MX-CAM-RZR14, MX-CAM-X317, MX-CAM-RNGR18 vehicle specific mounting kit
  • HD Video Resolution for crystal clear image
  • Element Ready™ to withstand the harsh outdoor environment
  • Image display switchable from mirror to normal to accommodate rear or front installation

Features & Benefits:

  • Plug and Power Design: Utilizing a common main harness and a vehicle specific T-Harness to connect easily into select Polaris and Can-Am models.
  • Hi-Res Color Camera: High resolution color camera provides crystal clear picture for backing up or rock crawling.
  • Easy Installation: Vehicle specific mounting brackets allow direct fit for Ranger, Can-Am, and 2014+ RZR.
  • Compatible w/ PMX Source Units: Plugs directly into PMX-3 and PMX-8 with included trigger wire adapter.
  • Requires Wiring Kit: Camera requires matching installation wiring kit.
