Description
Supremo 28mm cavity-back tweeter with Hexatech Aluminum underhung voice coil.
Acuflex technology.
Installation depth: 32mm
Installation dimension: 55mm
Impedance: 6 ohms
Power: 220 watts

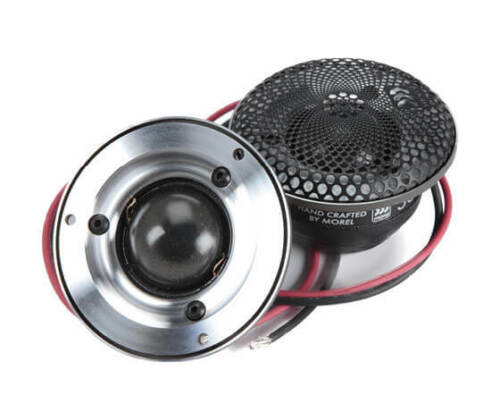

Morel SUPREMO PICCOLO LOTUS
- Supremo Piccolo uses a 28mm (1.1″) Acuflex™ coated soft dome resulting in wider dispersion and smoother tonal characteristics. This enables hours of tireless listening pleasure.
- The large Hexatech ™ aluminum voice coil and powerful neodymium flat pancake magnet design offer interference-free reproduction and higher power handling.
- The Supremo Piccolo is available in a 675mm diameter faceplate: ideal for dash and A-pillar installations in most cars.
- The Supremo Piccolo complements the Supremo woofer perfectly, with an exceptionally low resonance point and a flat frequency response.
