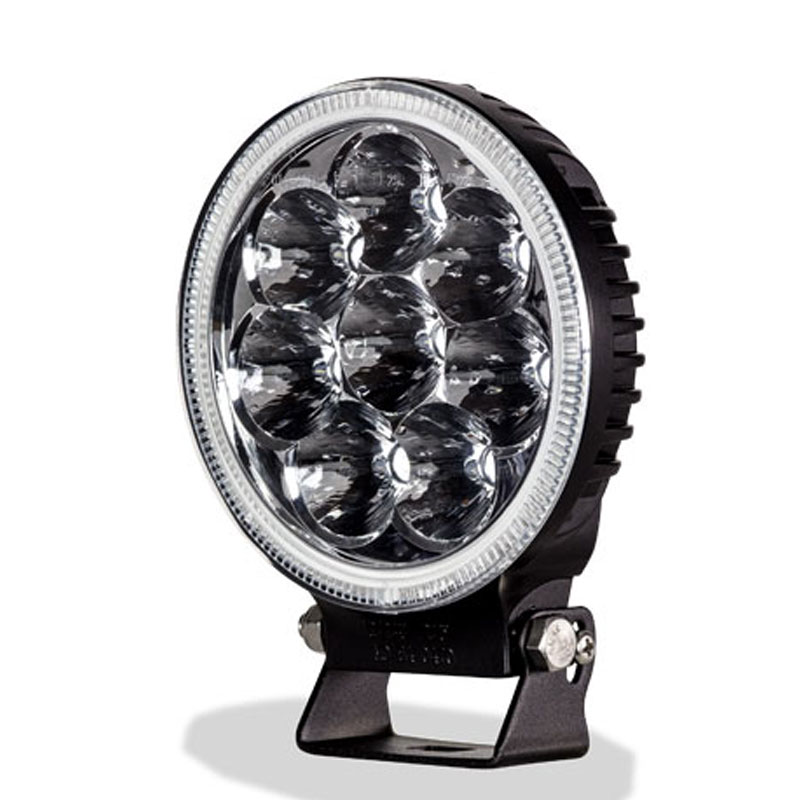

HE-DL3-1

Heise – HE-DL3

SPECS
Input Voltage: 10–30V DC
Wattage: 24W (8–3W OSRAM LEDs)
Raw Lumens: 1920
LUX @ 10M: 570
Color Temperature: 6000K
Beam Pattern: 26° Spot
Size: 5″W x 6.75″H x 2″D

CALL FOR PRICE

SKU HE-DL3
Brand:

Description

SPECS
Input Voltage: 10–30V DC
Wattage: 24W (8–3W OSRAM LEDs)
Raw Lumens: 1920
LUX @ 10M: 570
Color Temperature: 6000K
Beam Pattern: 26° Spot
Size: 5″W x 6.75″H x 2″D

CONSTRUCTION
Housing Material: Die–cast Aluminum Housing
Housing Color: Black
Membrane: Gore™
Lens Material: PC
Mounting Bracket: Black Powder Coated Steel
Hole Dimensions: Mounting Bolt Drill – .375″
Electronics: Integrated–Epoxy Encapsulated
Hardware: Stainless 316

OPERATION
Operating Temperature: –40°C to +60°C
Current Consumption: 1.3 amps @ 13.8 volts
IP Rating: IP67
Protections: Reverse Polarity
Optional black cover HE-DLC5 available
UPC: 086429312948
Weight: 2
