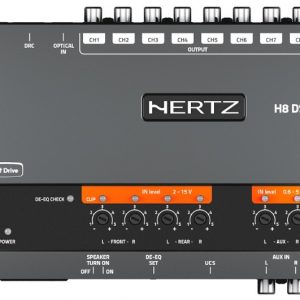

H8 DSP Processors

General Specifications
POWER SUPPLY
Operating power supply voltage 10.8 ÷ 14.4 VDC
Power supply 7.5 ÷ 15 VDC
Idling current 0,4 A
Switched off without DRC 2,5 mA
Switched off with DRC 4 mA
Remote IN voltage 6,5 ÷ 15 VDC (1,3 mA)
Remote OUT voltage 12 VDC (130 mA)

Audio Specifications
Distortion – THD @ 1 kHz, 1V RMS Output 0,005%
Bandwith @ -3 dB 10 ÷ 22k Hz
S/N Ratio @ A weighted
Digital input
Master Input
AUX Input 96
105 dBA
95 dBA
96 dBA
Channel Separation @ 1 kHz 85 dB
Input sensitivity (Speaker In) 2 ÷ 15 V RMS
Input sensitivity (AUX In) 0,6 ÷ 5 V RMS
Input impedance (Speaker In) 2,2 kΩ
Input impedance (AUX) 15 kΩ
Max Output Level (RMS) @ 0.1% THD 4 V RMS

General Specifications
POWER SUPPLY
Operating power supply voltage 10.8 ÷ 14.4 VDC
Power supply 7.5 ÷ 15 VDC
Idling current 0,4 A
Switched off without DRC 2,5 mA
Switched off with DRC 4 mA
Remote IN voltage 6,5 ÷ 15 VDC (1,3 mA)
Remote OUT voltage 12 VDC (130 mA)

Audio Specifications
Distortion – THD @ 1 kHz, 1V RMS Output 0,005%
Bandwith @ -3 dB 10 ÷ 22k Hz
S/N Ratio @ A weighted
Digital input
Master Input
AUX Input 96
105 dBA
95 dBA
96 dBA
Channel Separation @ 1 kHz 85 dB
Input sensitivity (Speaker In) 2 ÷ 15 V RMS
Input sensitivity (AUX In) 0,6 ÷ 5 V RMS
Input impedance (Speaker In) 2,2 kΩ
Input impedance (AUX) 15 kΩ
Max Output Level (RMS) @ 0.1% THD 4 V RMS

General Specifications
POWER SUPPLY
Nominal Power supply voltage / fuse: 7 ÷ 20 VDC / 1A
Pulse operating voltage: 5 ÷ 24 VDC
Idling current: 0.34 A
OFF current (ART= OFF): <80 uA
OFF current (ART= ON): <80 uA
Remote IN 6 ÷ 20 VDC (10 mA)
Remote OUT 4 ÷ 20 VDC (150 mA)
ART – Automatic Remote Turn on/off from BTL speaker outputs (selectable): 1.5 ÷ 7 VDC

Output Stage
Analog outputs (rca) 8 channels
Max output level (rms) @ 0.05% THD 4V
95dBAAnalog outputs management The DSP controls each output channel: gain, crossover, EQ, delay, polarity
Bandwidth 10Hz – 40KHz (+/-3db)
Signal to noise ratio (A weighted) 105dBA (Analog Input) 112dBA (Digital Input)
THD+N (@ 1Vrms out, @ 1Khz) 95dBA
