Compact Power Amplifiers

General Specs

Channels 2 – 1
POWER SUPPLY
Power supply voltage / fuse: 11 ÷ 15 VDC / 1 x 20 A
Idling current (power ON/OFF) 0.4 A / 0.04 mA
Consumption @ 2 Ω, 14.4 VDC (Max Musical Power): 12 A
Remote In: 7 ÷ 15 VDC – 1 mA
ART: Automatic Remote Turn-On/Off with Speaker-In
AMPLIFIER STAGE
Distorsion – THD (100 Hz @ 4 Ω) 0.01 %
Bandwidth: 10 ÷ 65k Hz
S/N Ratio (A weighted @ 1 V): 103 dB
Damping factor (100 Hz @ 4 Ω): 200
Pre-In sensitivity: 0.2 ÷ 5 VRMS
Speaker-In sensitivity: 0.8 ÷ 20 VRMS
Load impedance (MIN)
@ 2 Ch: 2 Ω
@ 1 Ch: 4 Ω
Max size (mm / in.): 215 x 190 x 50 / 8.46 x 7.48 x 1.97
Weight (kg / lb.): 1.80 / 3.96
Adjustable Crossovers yes

General Specs

Channels 2 – 1
POWER SUPPLY
Power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 20 A
Idling current (power ON/OFF) 0. 6 A / 0.4 mA
Consumption @ 2 Ω, 14.4 VDC (Max Musical Power): 20 A
Remote In: 7 ÷ 15 VDC – 1 mA
ART: Automatic Remote Turn-On/Off with Speaker-In
AMPLIFIER STAGE
Distorsion – THD (100 Hz @ 4 Ω): 0.03 %
Bandwidth: 10 ÷ 65k Hz
S/N Ratio (A weighted @ 1 V): 105 dB
Damping factor (100 Hz @ 4 Ω): 300
Pre-In sensitivity: 0.2 ÷ 5 VRMS
Speaker-In sensitivity: 0.8 ÷ 20 VRMS
Load impedance (MIN)
@ 2 Ch: 2 Ω
@ 1 Ch: 4 Ω
Max size (mm / in.): 315 x 190 x 50 / 12.40 x 7.48 x 1.97
Weight (kg / lb.): 2.57 / 5.66
Adjustable Crossovers yes

General Specs

Channels 4 – 3 – 2
POWER SUPPLY
Power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 20 A
Idling current (power ON/OFF) 1 A / 0.04 mA
Consumption @ 2 Ω, 14.4 VDC (Max Musical Power): 21 A
Remote In: 7 ÷ 15 VDC – 1 mA
ART: Automatic Remote Turn-On/Off with Speaker-In
AMPLIFIER STAGE
Distorsion – THD (100 Hz @ 4Ω): 0.01 %
Bandwidth: 10 ÷ 45K Hz
S/N Ratio (A weighted @ 1 V) 103 dB
Damping factor (100 Hz @ 4 Ω): 120
Pre-In sensitivity 0.2 ÷ 5 VRMS
Speaker-In sensitivity: 0.8 ÷ 20 VRMS
Load impedance (MIN)
@ 4 Ch: 2 Ω
@ 3 Ch: 2 Ω + 2 Ω + 4 Ω
@ 2 Ch: 4 Ω
Max size (mm / in.): 315 x 190 x 50 / 12.40 x 7.48 x 1.97
Weight (kg / lb.): 2.62 / 5.77
Adjustable Crossovers yes

General Specs
Channels 4 – 3 – 2
POWER SUPPLY
Power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 20 A
Idling current (power ON/OFF) 1.6 A / 0.04 mA
Consumption @ 2 Ω, 14.4 VDC (Max Musical Power): 22 A
Remote In: 7 ÷ 15 VDC – 1 mA
ART Automatic Remote Turn-On/Off with Speaker-In
AMPLIFIER STAGE
Distorsion – THD (100 Hz @ 4 Ω) 0.02 %
Bandwidth: 10 ÷ 60K Hz
S/N Ratio (A weighted @ 1 V) 100 dB
Damping factor (100 Hz @ 4 Ω): 200
Pre-In sensitivity 0.2 ÷ 5 VRMS
Speaker-In sensitivity: 0.8 ÷ 20 VRMS
Load impedance (MIN)
@ 4 Ch: 2 Ω
@ 3 Ch: 2 Ω + 2 Ω + 4 Ω
@ 2 Ch: 4 Ω
Max size (mm / in.): 215 x 190 x 50 / 8.46 x 7.48 x 1.97
Weight (kg / lb.): 1.94 / 4.27
Adjustable Crossovers yes

General Specs
Channels 4 – 3 – 2
POWER SUPPLY
Power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 35 A
Idling current (power ON/OFF) 1.6 A / 0.05 mA
Consumption @ 2 Ω, 14.4 VDC (Max Musical Power): 40 A
Remote In: 4 ÷ 16 VDC – 1 mA
ART: Automatic Remote Turn-On/Off with Speaker-In
AMPLIFIER STAGE
Distorsion – THD (100 Hz @ 4 Ω): 0.03%
Bandwidth: 10 ÷ 35k Hz
S/N Ratio (A weighted @ 1 V): 105 dB
Damping factor (100 Hz @ 4 Ω): 200
Pre-In sensitivity: 0.2 ÷ 5 VRMS
Speaker-In sensitivity: 0.8 ÷ 20 VRMS
Load impedance (MIN)
@ 4 Ch: 2 Ω
@ 3 Ch: 2 Ω + 2 Ω + 4 Ω
@ 2 Ch: 4 Ω
Max size (mm / in.): 315 x 190 x 50 / 12.40 x 7.48 x 1.97
Weight (kg / lb.): 2,73 / 6.01
Adjustable Crossovers yes

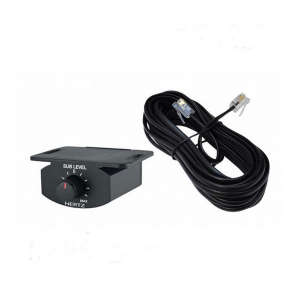

Brand Hertz Audio
Connectivity Technology Radio Frequency
Maximum Range 5 Meters
About this item
Dimensions (W x H x D): 1.5″ x 0.96″ x 1.58″
Cable Length: 19.5 Feet
Automatic Remote Turn-Off
Balanced Input Circuitry
CEA Compliant: Yes
